Class RBT wooden bodied open wagons |
The body condition of many of the all steel RB class open wagons was becoming poor by the late 1950's and so in 1959/60 a group of 49 wagons were rebuilt with new timber bodies and reclassified RBT. The arrangement of the doors was different on the RBT's compared with the wooden RB's. |
1959 | 715, 761, 775, 776, 815, 2490, 3855, 5004, 9689, 11187, 11191, 11194, 11196, 11197, 11202, 11204, 11214, 11215, 11222, 11230, 11233, 11234, 11235, 11237, 11238, 11241, 11246, 11251, 11253, 11259, 11264, 11273, 11279, 11283, 11284, 11285, 11287, 11288, 11293, 11295, 11297, 11298 |
1960 | 755, 11181, 11183, 11199, 11209, 11266, 11280 |

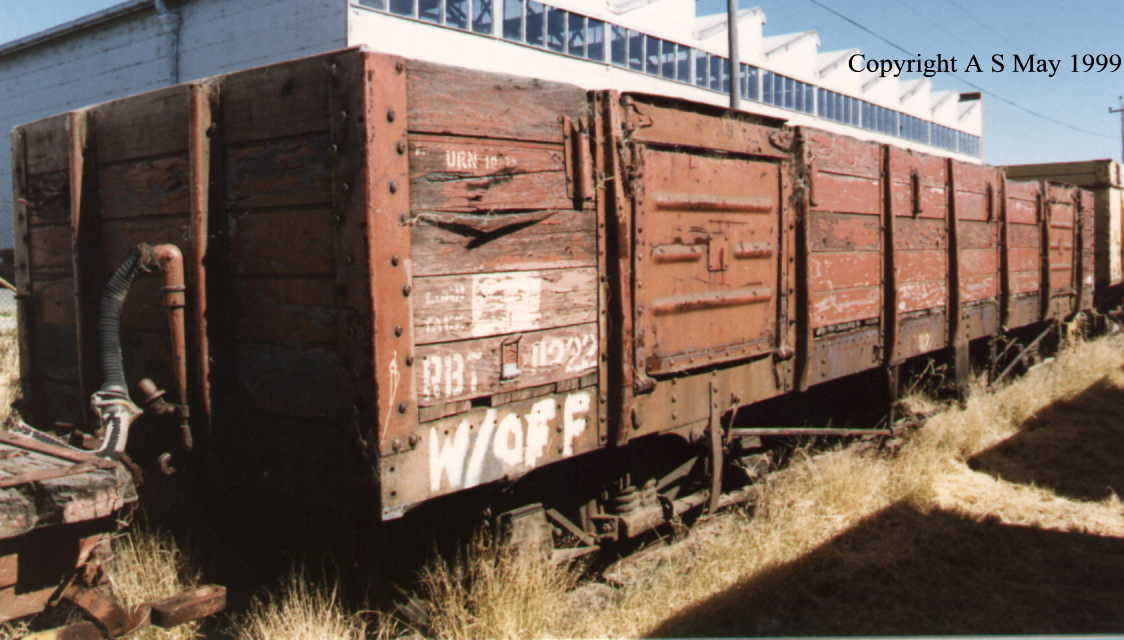

RBT11238 J.Parker(RHWA collection) |
Number 11297 was written off in 1963 and in 1968 a single wagon from this class (11183) was converted into class RBC bulk cement wagon. Further two wagons (715, 776) were converted to class QRC flat wagons in 1971. Some of the remaining wagons were reclassified RB for reasons that are now unclear as these wagons retained their RBT type bodies. The final disposal of the remaining wagons is as follows: |
1971 |
11293 to RB |
1972 | 9689, 11181, 11187, 11209, 11214, 11234, 11279 written off
755, 2490, 11284 to RB 11187 ex written off RBT to RB |
1973 | 761, 3855, 11197, 11199, 11215, 11241 written off
RB11293 written off |
1975 | 11251 written off |
1976 | 11295 to RB |
1977 | 11196, 11202, 11285 written off |
1978 | 11191, 11235 written off |
1979 | 11187 written off |
1980 | 775, 5004, 11273, 11280 written off |
1981 | 11204 written off |
1982 | 11194, 11237, 11238, 11259, 11287 written off |
1983 | 815, 11222, 11230, 11233, 11246, 11253, 11266, 11288 written off
RB755, 2490, 11284, 11295 written off |
The WAGR outline diagram is shown below. |
